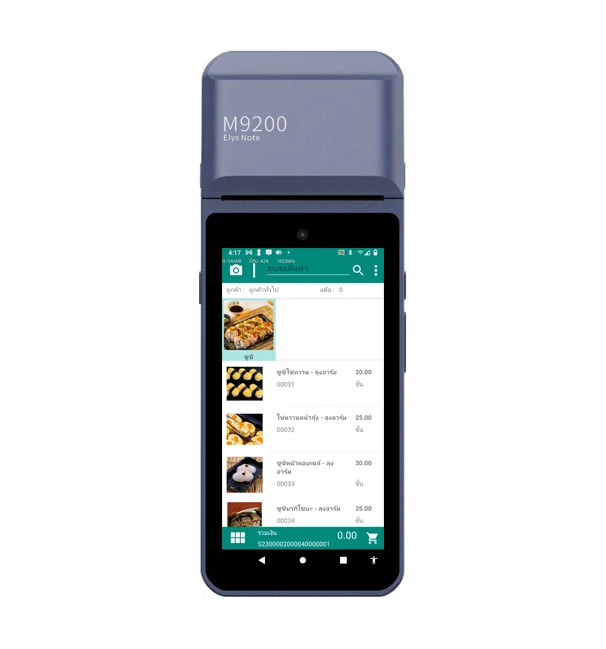

Elys M9200

Elys M9200

Operating System
Android 12 Go Based
(GMS certifed)
with Uniphiz support

Processor
Quad core A53 2.0GHz

Memory
LPDDR4 2GB + eMMC 16GB

Keys / Buttons
Power On/Off
Volume + | Volume –
Scan

Thermal Printer
Receipt printing, paper roll: 58mm width, 40mm dia
Label printing optional, paper roll width 30-58mm

Cameras
Front Camera : 2M Fix Focus (optional)
Dual-Rear Camera : 2M Auto Focus (opt 5M) + Barcode Scanner

Physical
214 x 80 x 51.5mm
350g

Displays
720 x 1440 Pixel,
5.5inch IPS LCD,
Multi-touch,AF, 6H, 400nits

Card Readers
NFC Contactless
(Reader, P2P, card emulation)

SIM/SAM
2SAM +1SIM + 1SD,
or 1SAM + 2SIM + 1SD
eSIM (optional)

Battery
Li-ion Polymer 7.4V 2800mAh,
Field replacable

Comms Configurations
2/3/4G Band
Dual band WiFi5(2.4/5GHz)
BT5.0 | GPS

Environmental
-10～45℃ (14°F ~ 113°F) Operating Temperature
-20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature
5% ~ 96% Relative Humidity, Non-Condensing

Sensor
Light Sensor | G-Sensor |
Vibration Motor | Flashlight |
Geo-location

Power
5V 2A

Accessories (optional)
wrist band | Charging Base | Rugged Case

Ports
1 x USB Type-C |
1 x Pogopin (2 PIN)

Multimedia
Audio Speaker
Dual Mic (optional)

Certification
CE | UKCA | BQB | RoHS | GMS
